NVMe M.2 SSD housing 10Gbps

NVMe M.2 SSD external hard drive enclosure 10Gbps

Do you have the latest technology in the field of data storage but you do not yet have the right housing? Then you can consider the latest Orico NVMe M.2 SSD housing. In combination with a unique transparent design and the latest technology, this is exactly the product you need. This housing is suitable for NVMe M.2 drives up to 2TB.

Extremely fast data transfer

The Orico NVMe M.2 SSD external hard drive enclosure features the latest 10Gbps USB 3.1 Gen2 Type-C interface. This results in very fast data exchange like never seen before. This way, high-quality images, VR technology and other large files can be exchanged quickly and easily.

M.2 interface VS MSATA interface

The M.2 interface is another alternative to the MSATA interface developed by Intel. The read and measure speed of the M.2 interface can reach up to 992 MB / s. The size of the M.2 interface is also different from that of the MSATA interface. The M.2 interface is only 2.75 mm thick and therefore a lot smaller than the MSATA.

Versatile in use

Thanks to the different screw holes, the NVMe M.2 housing can be used for different types of NVMe M.2 drives. It is possible to install the following disks: 22x30, 22x42, 22x60 and 22x80. Check in advance whether your NVMe M.2 disk fits in this Orico NVMe M.2 housing.

Compatible with PCIe NVMe M.2 M Key SSD with 2280, 2260, 2242, 2230 form factor: Samsung 950 Pro, PM951, PM981, SM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro, WD Black, ADATA XPG, Corsair Force, Crucial, Intel Optane memory 600P, 760P, 900P, Toshiba OCZ RC100, Patriot, SK Hynix, Kingston, Mushkin Pilot, DREVO D1 XTREME Z370. Note: not suitable for SATA M.2 SSD.

Note: This enclosure is only suitable for NVME M.2 drives, including:

ADATA SPECTRIX S40G
ADATA SX6000 Lite and PRO
ADATA SX8200 PRO
ADATA XPG GAMMIX S5 / S11 PRO
ADATA XPG SPECTRIX S40G
KINGSTON S-A1000-M8 NVME 240/480/960 GB.
ORICO TROODON V500 SSD Series
LEXAR NM610
LEXAR NM520
VGEN HYPER NVME M.2 Series NV256VHY
SAMSUNG 950 PRO / SM961 (OEM)
SAMSUNG 960 PRO
SAMSUNG 970 EVO and EVO PLUS
WD BLACK PCI-e NVME SSD
WD BLUE SN500 NVME SSD

The NVMe M.2 hard drive enclosure is therefore NOT compatible with M.2 SATA drives.
Between the images you can find which disks are not compatible with this housing.

Installation:
1: Press and slide the back cover open.
2: Align the slot and insert the hard disk (not supplied).
3: Lock the screw on the back and fix the disk.
4: Place this in the housing and close the back cover.

Easy to connect to your phone / laptop

Connect the NVMe M.2 SSD housing to phones that have a Type-C interface such as the Huawei and the Meizu to easily increase the writing space. A number of smartphones from the Samsung brand also have the Type-C interface. Examples include the Samsung Galaxy S8 series, S9 series, S10 series and the Galaxy Note8 / Note9, the Huawei Mate 10 series, Mate 20 series and P20 series.

The NVMe M.2 SSD enclosure can also be used with: Apple 12 ”MacBook, MacBook Pro, MacBook Air, Huawei MateBook, MateBook X, MateBook E, Mi 12.5” Air, Mi Gaming Notebook, ASUS ZenBook series / ROG series, Lenovo Yoga 5 / ThinkPad XI, Dell XPS Series, Razer Blade and Software Surface 2.

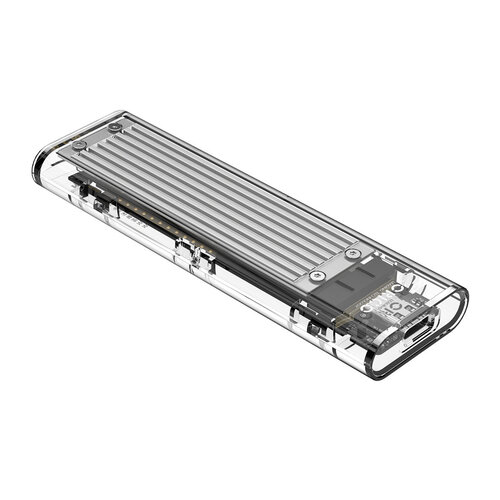

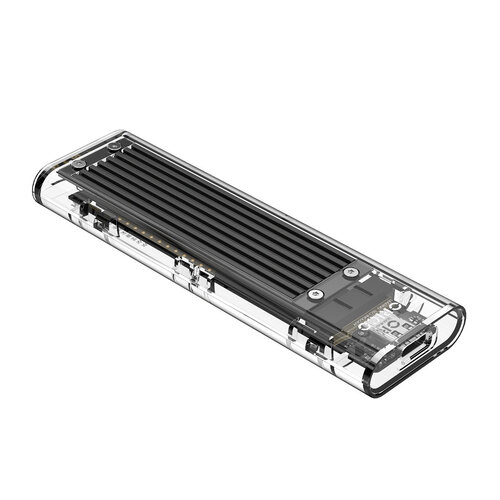

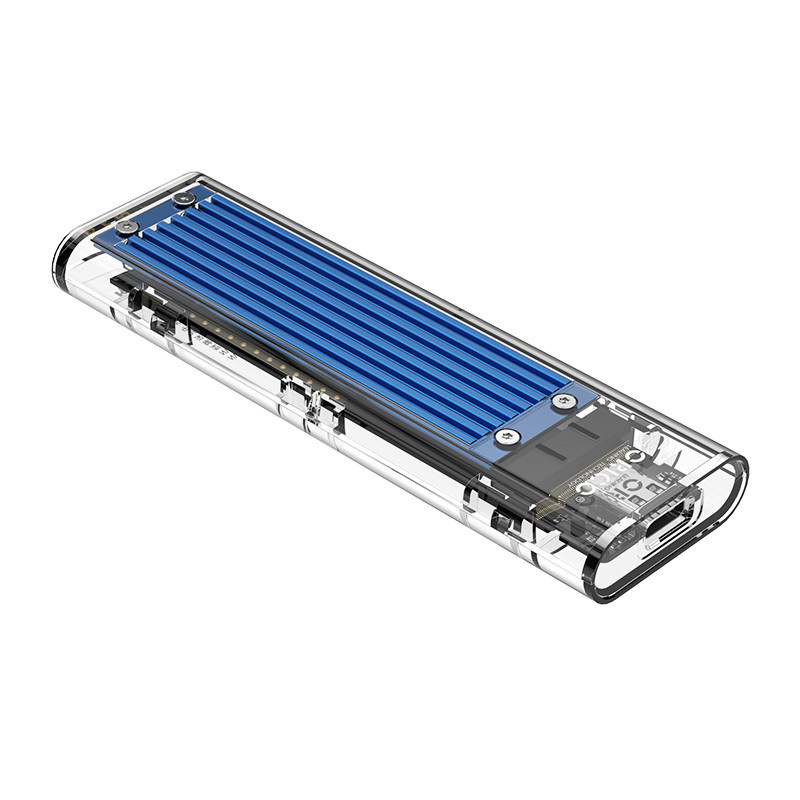

Ultra-thin design with sleek finish

The NVMe M.2 housing is made of aluminum and transparent polycarbonate which has a number of advantages. This way your NVMe M.2 is protected at all times against disruptions but also against overheating. This results in the best performance from your NVMe M.2 drive. The transparent design makes it a very unique housing where you can see all the components. The NVMe M.2 SSD housing is equipped with an LED indicator and has an automatic sleep mode after 10 minutes.

What is included?

In addition to the enclosure, the following is included:
1x USB 3.0 Type-A to USB-C 3.1 cable. (5Gbps, applicable for PC)
1x USB-C 3.1 to USB-C 3.1 cable. (10Gbps, applicable for laptop and USB-C phone)
1x bag of screws.
1x screwdriver.
1x user manual.

Product specifications:

✔ Product code: ORI-TMC2.
✔ Type: NVMe M.2 SSD housing.
✔ Material: aluminum and polycarbonate.
✔ Output interface: USB 3.1 Type-C.
✔ Speed: USB 3.1 10Gbps Gen2.
✔ Chip: JMS583 chip (10Gbps).
✔ Supports: UASP and TRIM protocol.
✔ Supporting capacity: 2TB.
✔ Power supply: Type-C power port.
✔ Installation: screws.
✔ No driver required.
✔ Supports: Windows, Mac, and Linux.
✔ Color: transparent and aluminum plate silver, black or red.
✔ LED indicator: yes.
✔ Including A to C + C to C cable.
✔ Weight: 28 grams.
✔ Product dimensions: 108mm x 34mm x 11.5mm.
